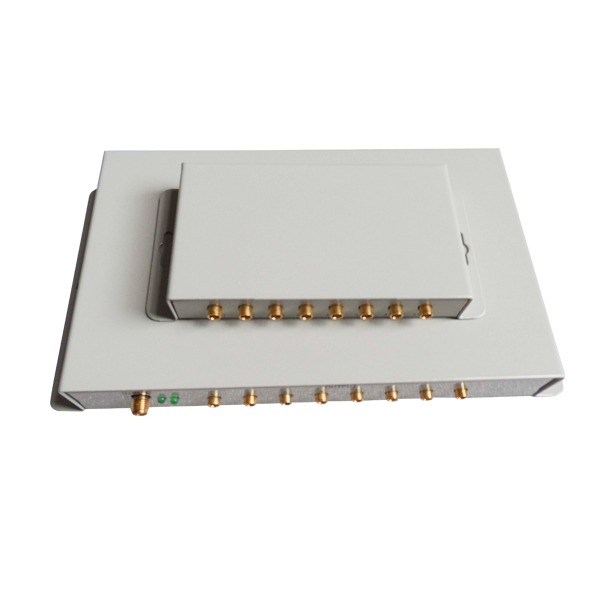

UHF Intelligent Master Multiplexer Inquiry


Applications: For Intelligent antenna Multiplexer,256 antennae can be connected with

one reader output port,1,024 antenna if with 1 4-port fixed reader.Widely applied for

RFID management system such as warehouse management,equipment real-time

monitoring,production process,etc.,to greately reduce cost.





Item name UHF Intelligent Master Multiple
Work frequency 902928MHz customized
characteristic
Simple physical wire connection

no extra power cable needed for slave,only RF co-axial cable to realise power supply,communication with master.

Automatically search and check the connection status for slaves  and antennae with power on,also support dynamic update on  the current connection situation.

support antenna scanning for its network topology and plug-and-play.

8MCX output port, each port support 4 level slave cascading,  also directly be connected with antenna.

Maximum 8 antennae can be connected into each slave, then one output port can connect up to 32 antenna.

Total 256 antennae supported,antenna switching speed less than 100ms.

Line length between the RF input side and the antenna side up to 10m or above.

Low power dissipation design with single +9VDC supply.

Low insertion loss.
Size 200*105*28MM
Price terms We accept EXW/ FOB /CNF/CIF price.
Payment term:  pay by T/T,  Western Union or paypal
50% deposit of the total payment before bulk production.
Delivery time 7 days for less than 50 pieces
