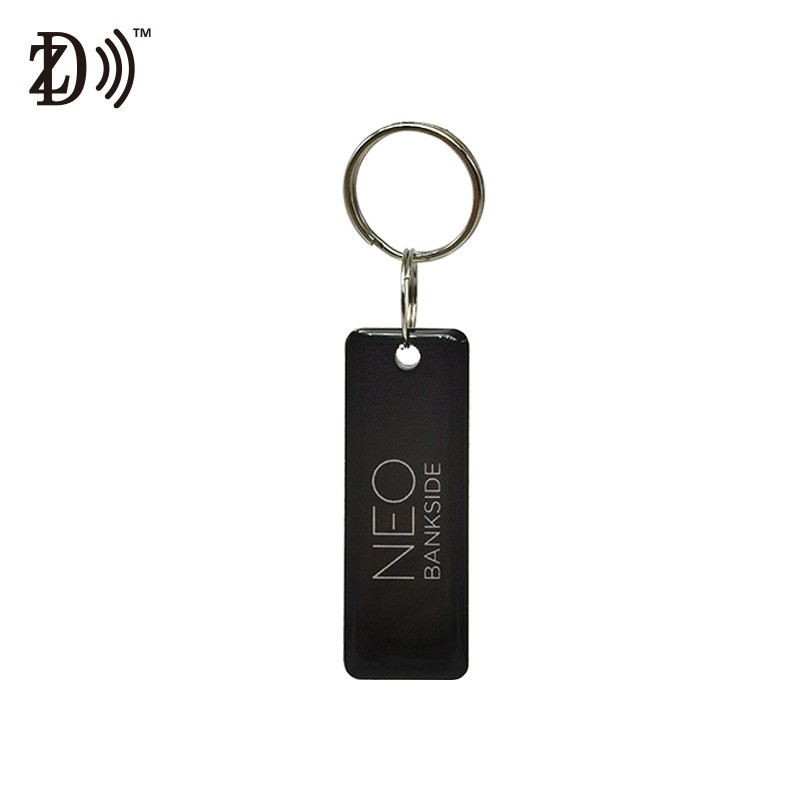

Access Control 13.56MHz NXP MIFARE 1S50 Door Lock Keydrop Epoxy NFC Keychain Inquiry


Epoxy Tag Details

Item

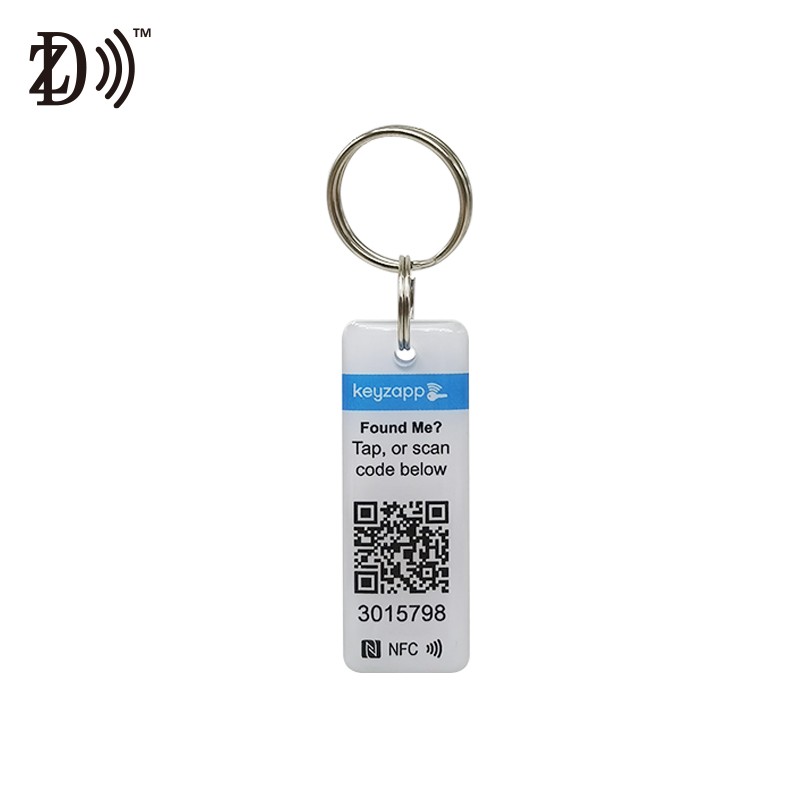

MIFARE 1S50 Epoxy Keychain

Material

ABS + Epoxy resin

Size

20/25/30mm Diameter , 42*26mm , 20x30mm , 50x30mm etc.

Crafts

Ultrasonic welding , Glossy , Chip encoding , Series number

Operation Frequency

13.56Mhz

Reading Distance

1 - 10 cm (Depend on the chip , working environment and the reader)

Data Retention

More than 10 years

Operating Cycle

Can be read and encoding with more than 100,000 times

Working Temperature

-20°C~ +55°C

MOQ

500pcs

                             Available chips High Frequency Chips(13.56Mhz)

Protocol ISO/IEC 14443A

1. MIFARE Classic® 1K, MIFARE Classic® EV1 1K, MIFARE Classic® 4K

2. MIFARE Plus® 1K, MIFARE Plus® 2K, MIFARE Plus® 4K

3. MIFARE® DESFire® 2K, MIFARE® DESFire® 4K, MIFARE® DESFire® 8K

4. NTAG® 203 (144 bytes), NTAG® 213 (144 bytes), NTAG® 215 (504 bytes), NTAG® 216(888 bytes)

5. MIFARE Ultralight® (48 bytes), MIFARE Ultralight® EV1 (48 bytes), MIFARE Ultralight® C(148 bytes)

Protocol ISO 15693/ISO 18000-3

1. ICODE® SLIX, ICODE® SLIX-S, ICODE® SLIX-L, ICODE® SLIX 2

Remark:
MIFARE and MIFARE Classic are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.
NTAG are registered trademarks of NXP B.V. and are used under license.
ICODE are registered trademarks of NXP B.V. and are used under license.

1.Epoxy Tag Structure:

Epoxy Cover+ PVC Material +Coil Antenna With Chip

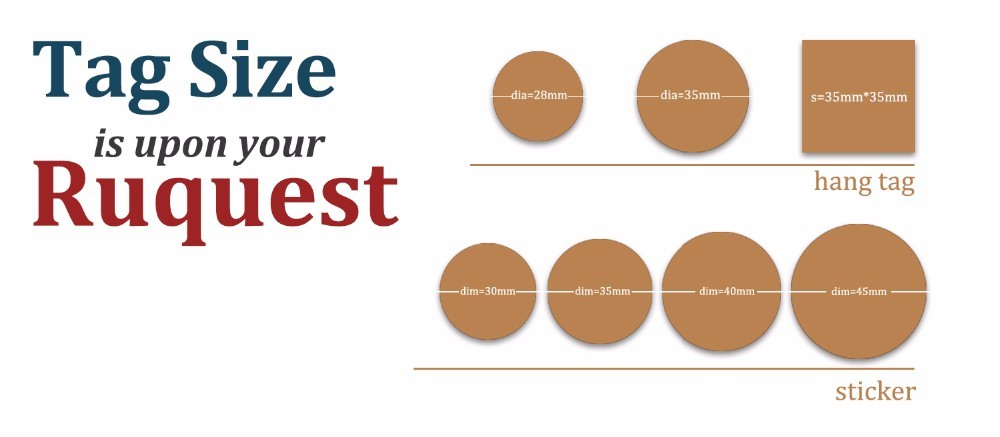

2.Epoxy Tag Size:

Dia: 20/25/28/35mm

Squ:35*35mm/30*30mm/42*26mm/57*30mm etc

Or Customized

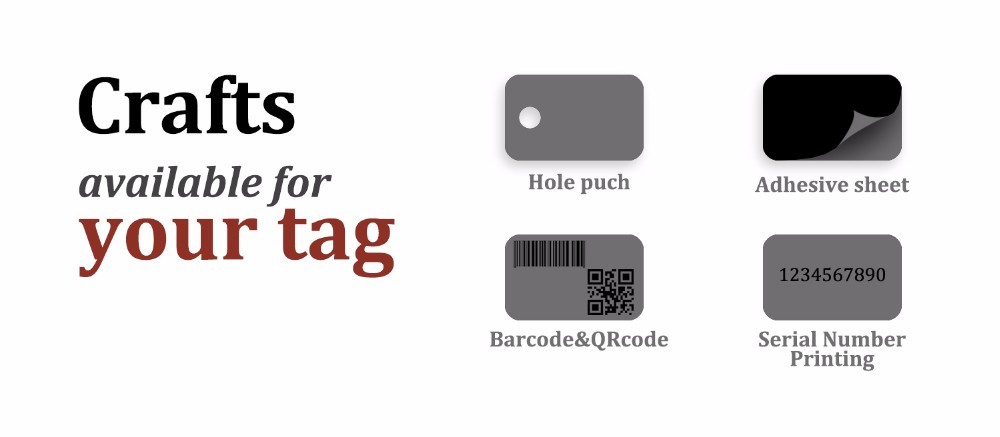

3.Crafts for Epoxy Tag:

Hole punch;Barcode/QR code;Serial number;Laser logo etc...

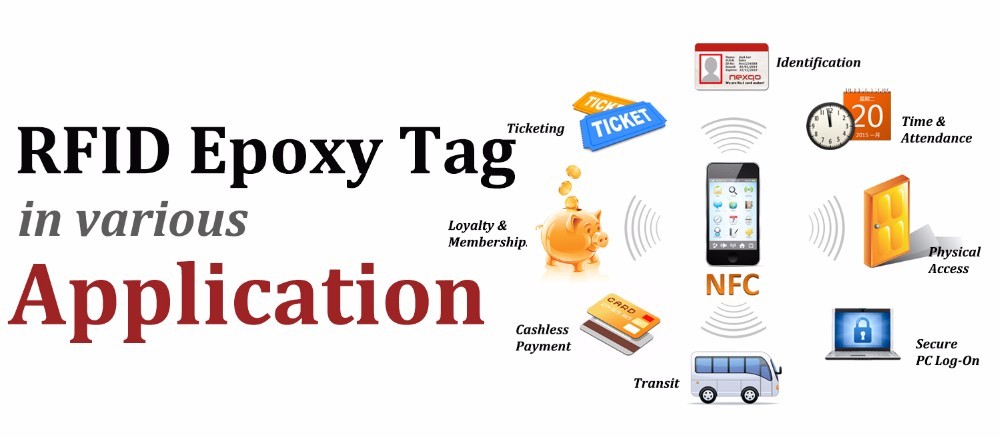

4.Epoxy Tag Apllication:

For Ticketing,Identification,Time&Attendance,Cashless payment etc.

Details Images





Package for Epoxy Tag:

10pcs/string, 100pcs/box, 1000pcs/carton

Carton size:48*23*14cm

GW: 8kg/carton


Our Company

ZDCARD Tech Co. Ltd (ZDEATA Group) is based in Shenzhen, a "Special Economic Zone"in China for international and multinational companies and manufacturers.

Our total assets exceed 200 million RMB, and have since purchased our own high-techindustrial park with an area of 30,000 Square meter. ZDEATA is also a fully certified in China for industrial production.
Our main products:
♥ RFID Label / Tag / Wristband in different distance
♥ Smart Card, CPU Card, Magnetic Stripe Card, Password Data Card and Other kinds of cards.
♥ Smart Card Reader
♥ Plastic Box Packaging
