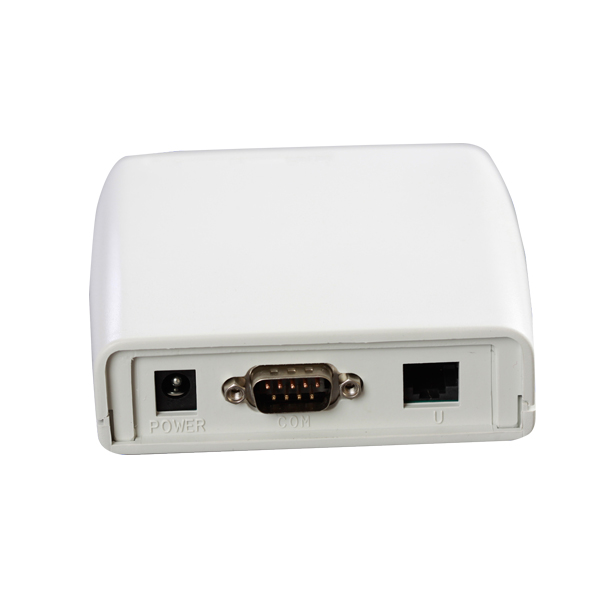

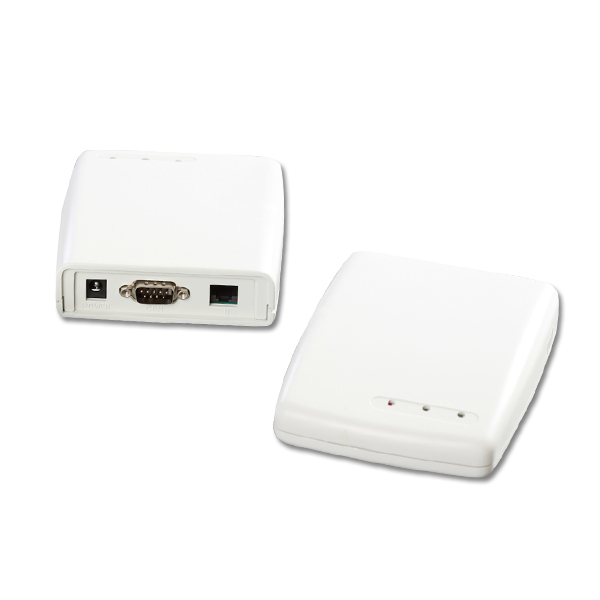

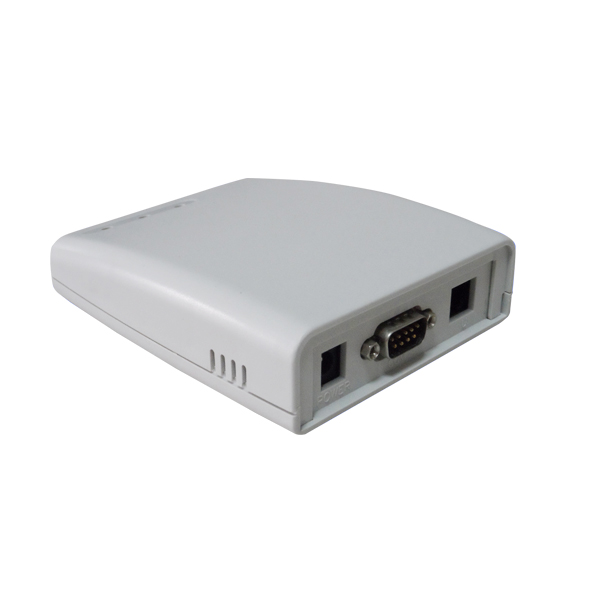

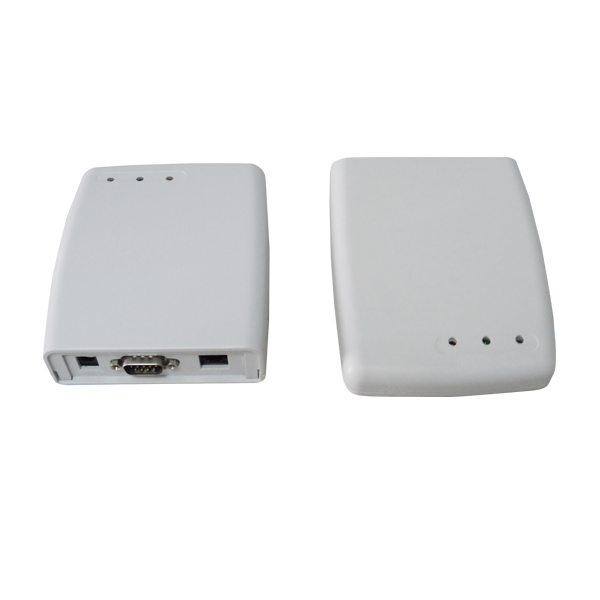

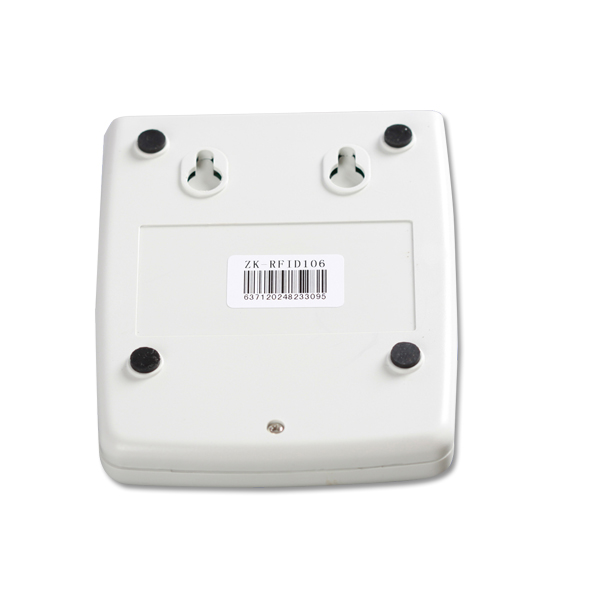

Desktop Passive UHF RFID tag Reader/Writer (ZD-RFID106) Inquiry


Applications:

Widely applied for RFID systems like Logistics,personal identification,intelligent parking lot,access system,anti-counterfeiting system and production process control,etc.

Item name Desktop Passive UHF RFID tag Reader/Writer (ZD-RFID106)
Working frequency 902928MHz customized
Read distance 0-300MM
Write distance 0-30MM
Support Protocol supports UHF EPC Gen2(ISO18000-6C), ISO18000-6B protocol electronic tags
Support Interface supports RS232, Wiegand Interfaces
Working mode FHSS or Fixed frenquency transmission
Output power maximum 30dbm(adjustable)
We can provide DLL and Demonstration Software source code  to facilitate further development
More specifications Low power disspation with single +6V DC power supply
Support Interactive and Active working mode
Output format and parameters can be set under active working mode
Size 123mmx94mmx29mm
Net weight 144g
Price terms We accept EXW/ FOB /CNF/CIF price.
Payment term:  pay by T/T,  Western Union or paypal
50% deposit of the total payment before bulk production.
Delivery time 7 days for less than 50 pieces
